All PRODUCT

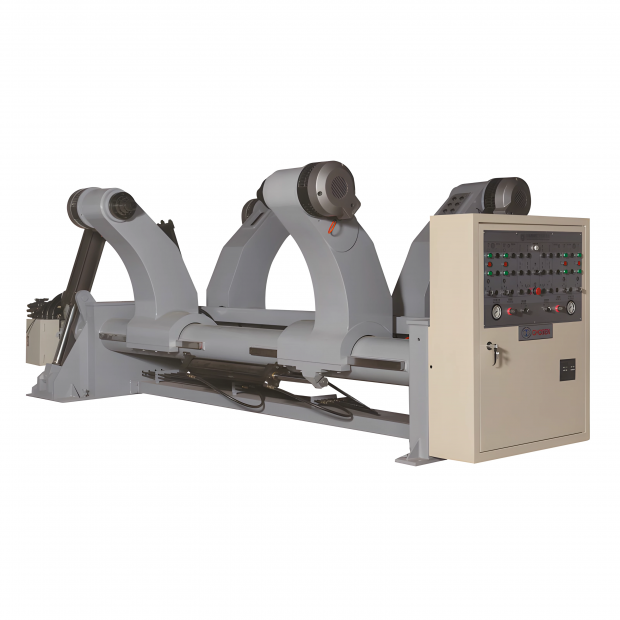

Max. Working Width:1,600mm-2,800mm
Max. Paper Diameter:1,600mm
Roll Track System with Motorized Dollies
Automatic Roll Alignment

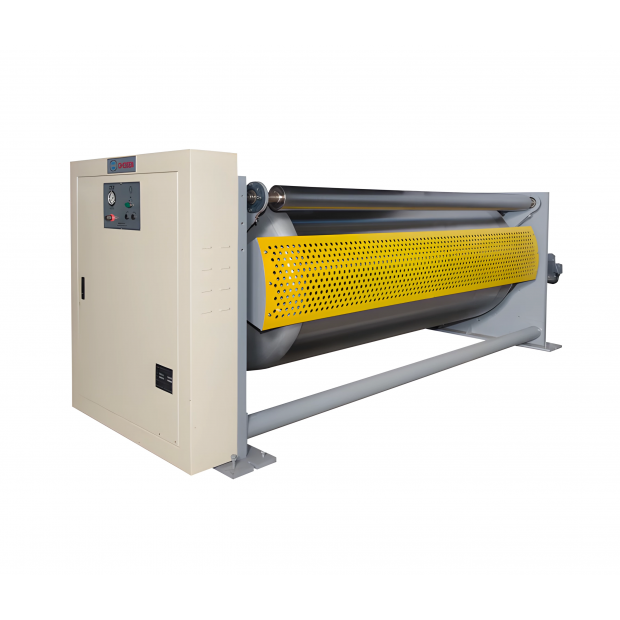

Max. Working Width:1,600mm-2,800mm
Diameter: 800mm-1,200mm
The main motor , swing arm utilize worm gear reducers for transmission.
The One Way Bearing  remains idle and is driven to rotate by the raw paper at high speeds.

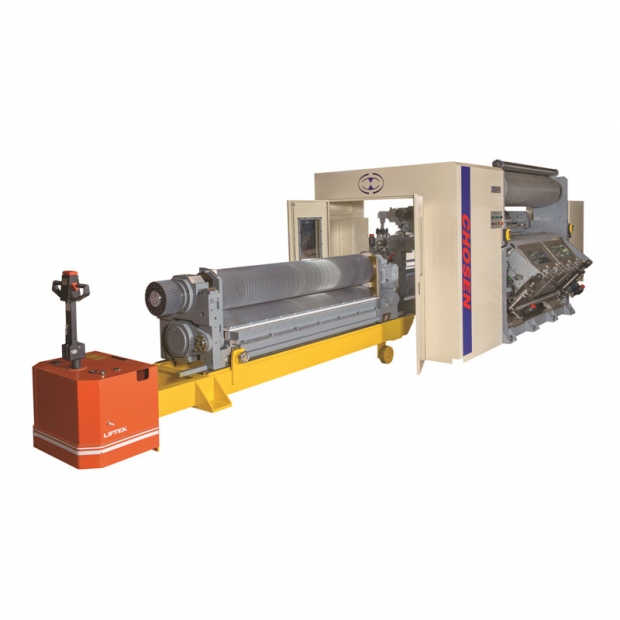

Maximum Working Width: 1,800mm - 2,500mm
Maximum Speed: 200m ~ 300m/min
Corrugating Roller Surface: Tungsten Carbide Coating
Flute Types: A, C, B, E, F
Cassette System: Hydraulic system, quick change within 10 minutes
Positive Pressure Design
Machine Frame Material: Cast iron for vibration resistance
Automatic Glue Dam Positioning
Pipeline Pressure Control
Machine Hydraulic System
Servo Motor Control
Electric Motor Cylinder for Quick Glue Roll Gap Adjustment
Automatic Water Spray Cleaning System for Glue Separation

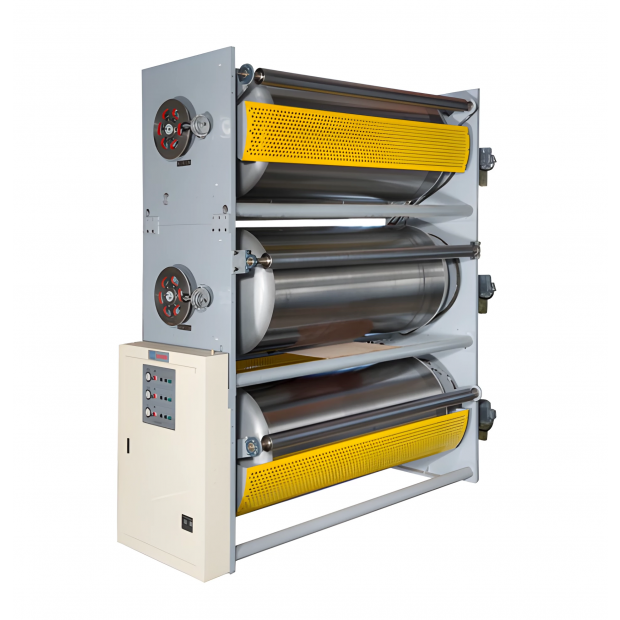

Max. Working Width:1,600mm-2,800mm
Diameter: 800mm-1,200mm
The main motor , swing arm utilize worm gear reducers for transmission.
The One Way Bearing  remains idle and is driven to rotate by the raw paper at high speeds.

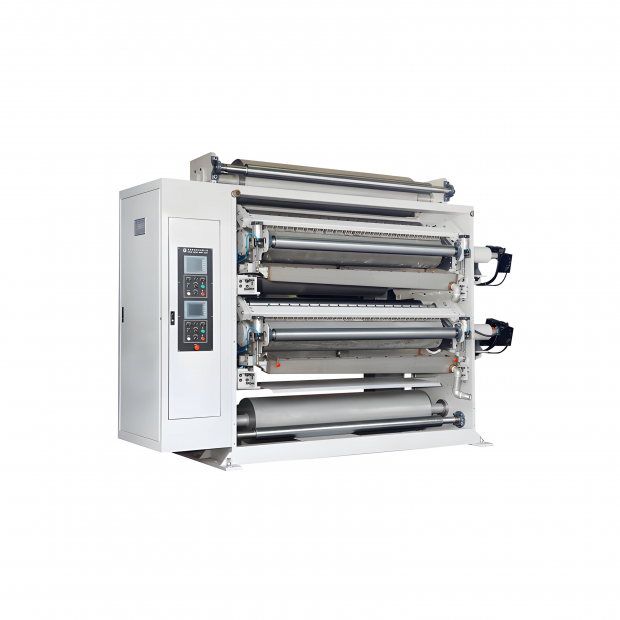

Maximum Speed: 250m - 300m/min
Automatically adjusted the gap by electric motor cylinder
Programmable Glue Metering with Machine Speed

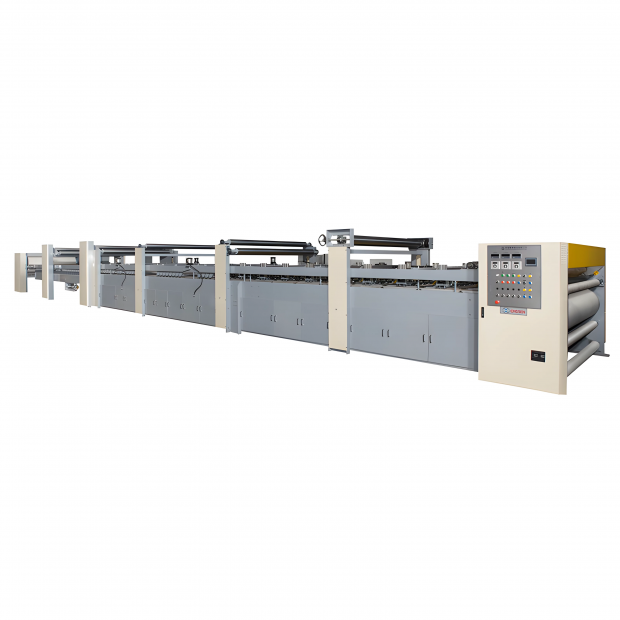

Max. Speed: 200M-300M/minute
Hot Plate x (10-20) pcs. Divided into (2-4) Sections
15” Channel Steel Body Frame
Plate Dimension: 150mm(H)x600mm(W)x 1700mm(L)- 2900mm(L)
Chrome Surface with Fine Ground
With 10 Sets and Weight Roller System of Thermal

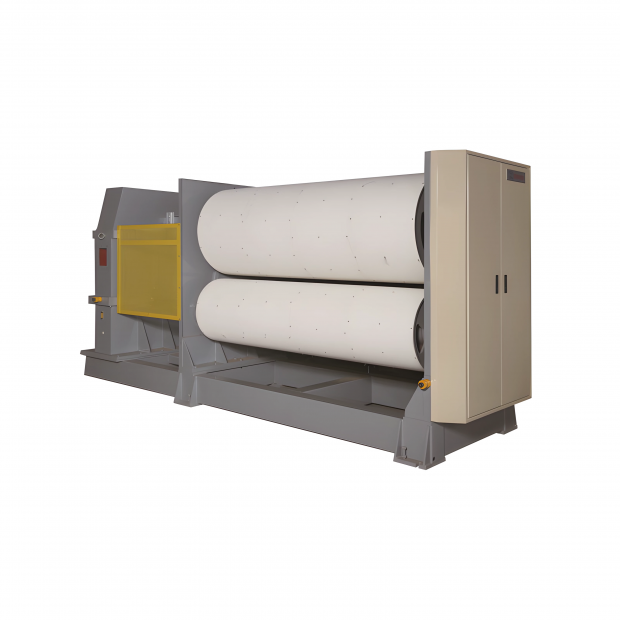

Maximun Speed: 150M-300M/minute
Upper Roll Diameter: 850mm
Lower Roll Diameter: 650mm
With Anti-Skip Taped Surface
Detachable Journal Mechanism

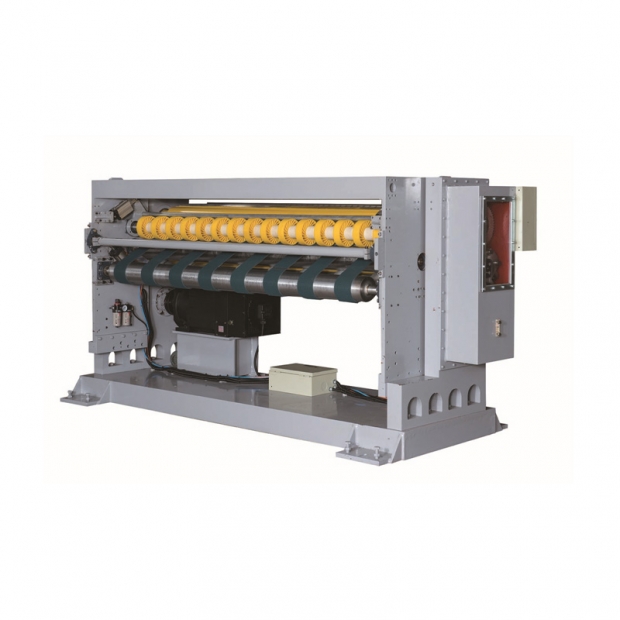

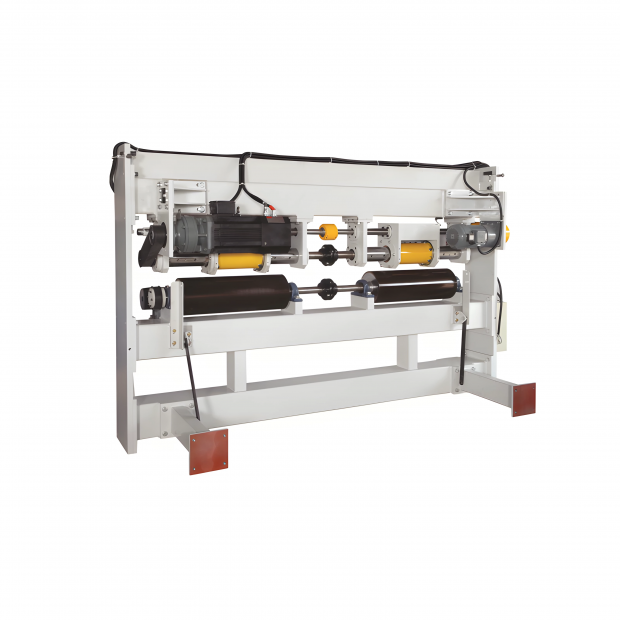

Maximum Working Width: 1,600mm - 2,500mm
Helical Cutter
Motor Type: Servo Motor
Equipped with waste ejection gate

Max. Working Width: 1,600mm-2,800mm
Servo Motor Driven
Endless Order Change Feature

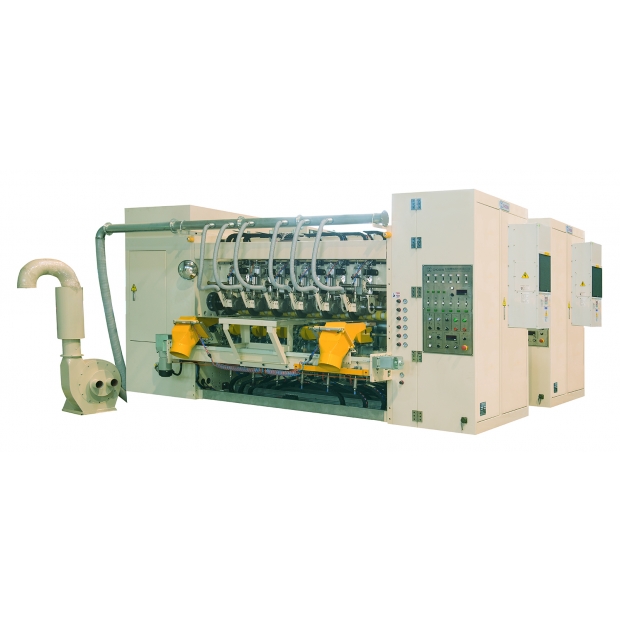

Max. Working Width: 1,600mm-2,500mm
Max. Speed: 200M-300M/minute
All Servo Independent Driven Slitting & Scoring
Single/Double Scoring
Top/Low Slitting
Tungsten Carbide Slitting Knives

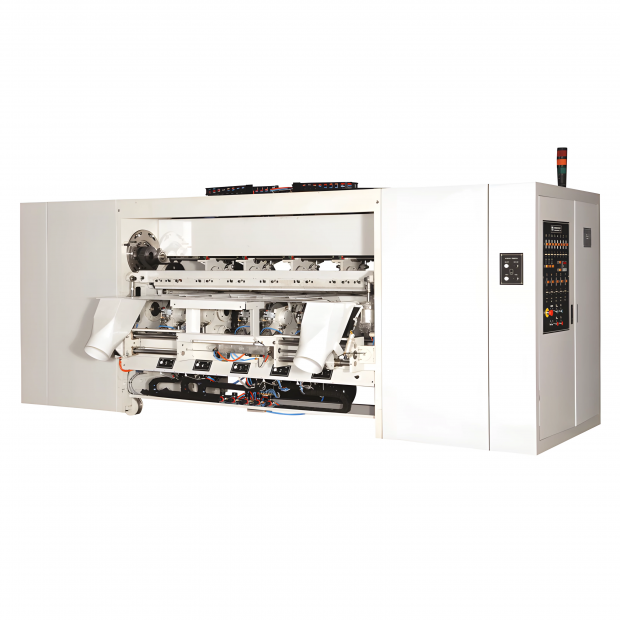

Max. Working Width: 1,600mm-2,500mm
Max. Speed: 200M-300M/minute
All servo direct drive mechanism,order change within 2-3 seconds.
The material of knife block & score block is aluminum alloy. Light weight ,high rigidity , move fast.
The top holder design .Clear cutting surface,less grinding.
Scoring profile change by Staggered wheel.
The holder in the middle of two plate , stable cutting , no easy to wear.
Tungsten carbide slitting knife.


Motor: Ac Servo
Max. Working Width: 1,800mm-2,500mm
Max. Speed: 200M~300M/minute
Knife Cylinder Circumference: 780mm , 820mm
Cutting Range: 500mm-9999mm
